Notice:
When you inquiry , you can choose the following Model
NANO-P1422HD-8TH-I3 Integrated Intel® Whiskey Lake i3-8145U dual cores 4 threads
2.1~3.9GHz Processor
NANO-P1422HD-8TH-I5 Integrated Intel® Whiskey Lake i5-8265U quad cores 8
threads1.6~3.9GHz Processor
NANO-P1422HD-8TH-I7 Integrated Intel® Whiskey Lake i7-8565U quad cores 8
threads1.8~4.6GHz Processor

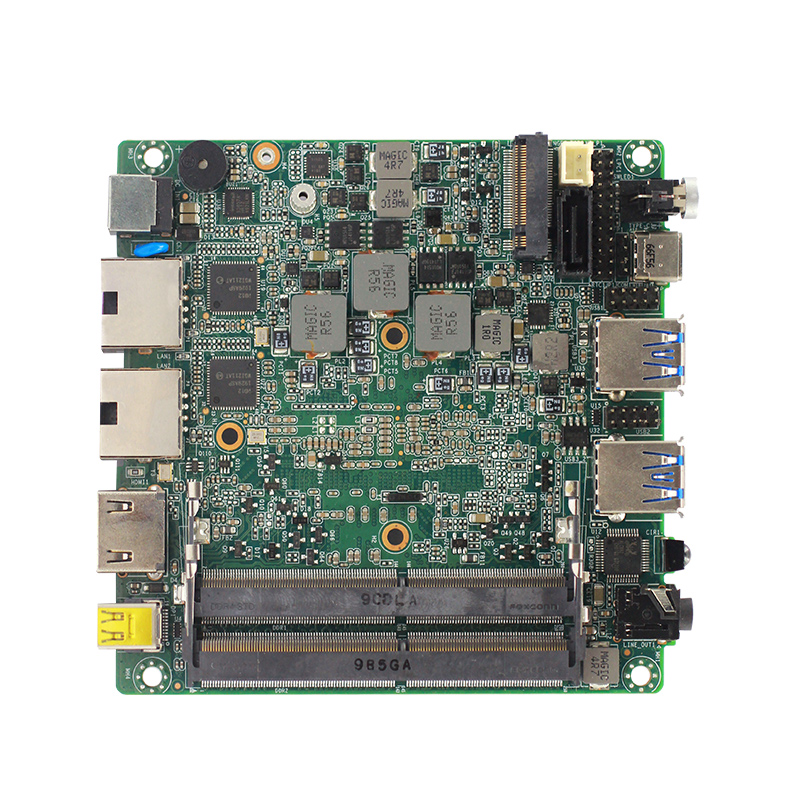

Intel® 8th Generation Whiskey Lake-U i3-8145U industrial NUC motherboard MINI
DP HDMI display
Key features
Integrated Intel® Core ™ 8th Generation Whiskey Lake-U i3-8145U
dual core 4 threads 2.1~3.9GHz Processor
2*DDR4 SO-DIMM memory slot, maximum support 64GB
Intel UHD Graphics 620
Support MINI DP + HDMI2.0 synchronous or asynchronous display
1*COM,
2*Gigabit LAN,
4*USB2.0, 2 * USB3.1
1*standard SATAIII
1*NGFF
Wide voltage DC 12-19V power supply
Size: 101 * 101 mm
Specifications
| Processor system | CPU | Integrated Intel® Core ™ 8th Generation Whiskey Lake-U i3-8145U
dual core 4 threads 2.1~3.9GHz Processor
|
| CPU package | FCBGA 1528 |
| chipset | Support Whiskey Lake-U series processors |
| BIOS | EFI BIOS |
| RAM | Technology Architecture | Dual channel DDR4 2133 / 2400MHz |
| Memory slot | 2 * DDR4 SO-DIMM memory slot, maximum support 64GB |
| video | Graphics controller | Intel UHD Graphics 620 (depending on CPU) |
| MINI DP | MINI DP supports a maximum resolution of 4096x2304 60HZ (this
interface supports DP ++) |
| HDMI2.0 | HDMI2.0 supports maximum resolution 4096x2304 60HZ |
| Dual display support | MINI DP + HDMI2.0 synchronous or asynchronous display |

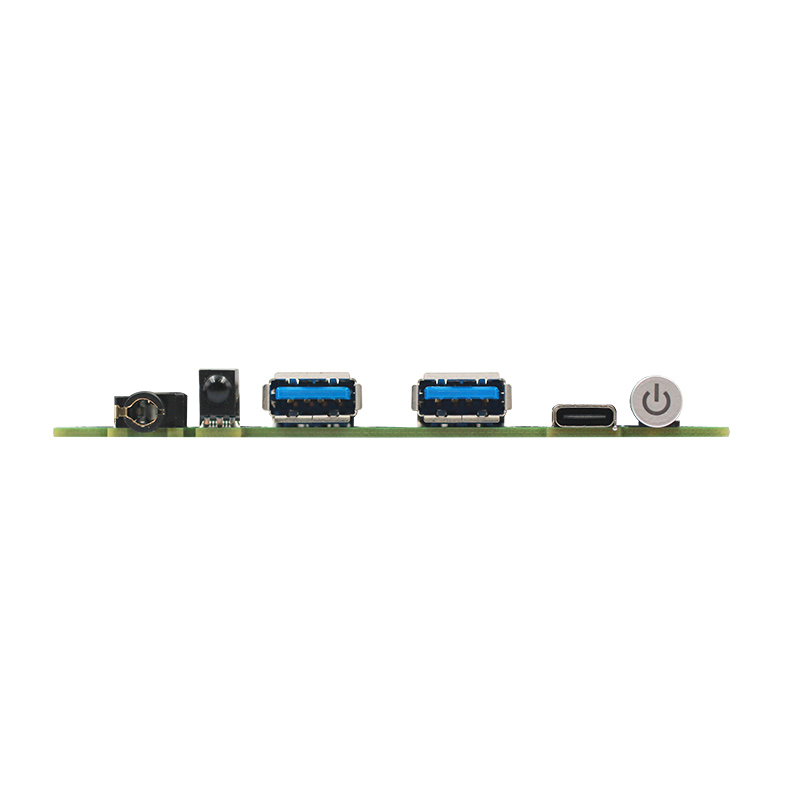

| I / O backplane | port | 1 * DC, 2 * LAN, 1 * HDMI2.0, 1 * MINI DP, 1 * AUDIO, 2 * USB3.1, 1
* SWLED, 1 * TPYE-C, 1 * CIR1 (infrared interface), 1 * CPU FAN |
| The internet | Controller | 2 * INTEL I211 Gigabit network card (replaceable I210 network card
chip), RJ45 interface |
| Audio | Controller | Realtek HD ALC662 audio decoding (left and right channels +
microphone) |
| Super I / O | Controller | IT8613E |
| Hardware monitoring | Watchdog timer | 0-255 seconds, provide watchdog routine |
| Cooler | Aluminum radiator with fan |
| Input / output interface | USB | 4 * USB2.0 (2 2x5 2mm pins), 2 * USB3.1 GEN2, 1 * TYPE-C USB3.1
GEN2 |
| Serial port | 1 * RS-232 (TTL level can be changed) |
| Expansion bus | Mini-PCle | 1 Mini-PCIe slot, support PCIe and USB devices, with micro SIM card
slot |
| LPC | 1* LPC pin expansion interface |
| storage | SATA | 1* standard SATAIII interface, maximum transfer rate 6Gb / s |
| NGFF | PCIE X2 NVME or SATA signal 2242 M2 hard disk (choose one of the
two) |
| power supply | Power type | Wide voltage DC 12-19V power supply (when using 12V power supply,
the current needs to reach 7A or above, when using 19V power
supply, the current needs to reach 4.74A or above) |
| working environment | Operating temperature | -20 ℃ ~ + 60 ℃ |
| storage temperature | -40 ℃ ~ + 85 ℃ |
| Working humidity | 0% ~ 90% relative humidity, no condensation |
| Storage humidity | 0% ~ 90% relative humidity, no condensation |
| OS | | WIN10 |
| Dimension | size | 101 * 101 mm |
| weight | 0.5KG |
Applications:
Industrial production control
Industrial manufacture
NUC pc motherboard
Mini pc motherboard
POS machine motherboard
Queuing machine motherboard
Vending machine main board
Cashier computer motherboard
Bank ATM mainboard
Kiosk motherboard
Smart medicine
Business intelligence terminal
Artificial intelligence
Internet of Things
