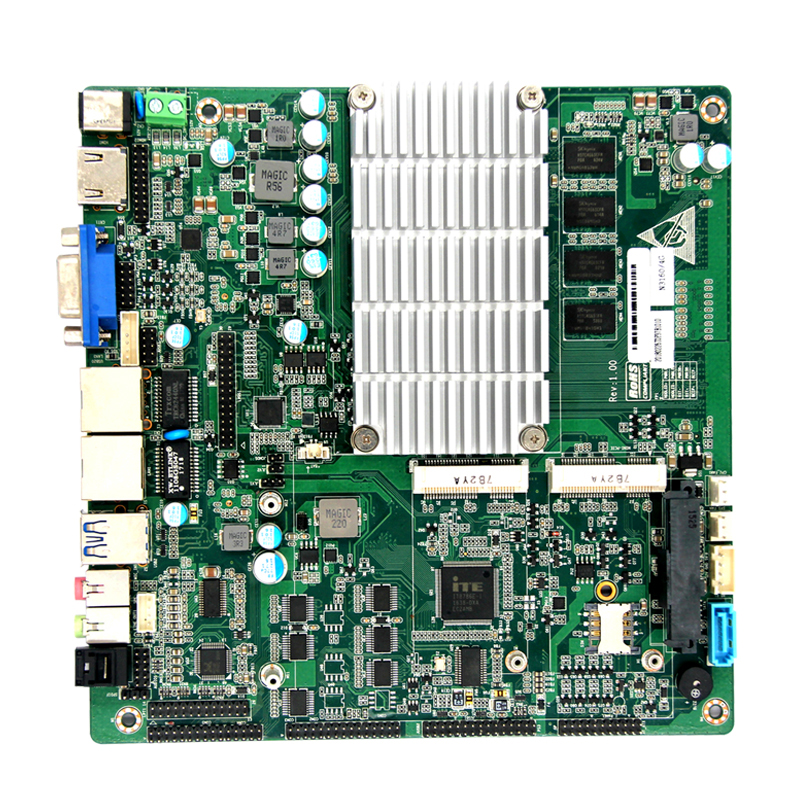

Quad cores Intel® N3710 mini itx fanless motherboard onboard 4GB
DDR3 6COM 2LAN DC12V
Notice:
When you inquiry , you can choose one of the following Model
ITX-P6522ELV-BRS-N3160 Integrated Celeron® Processor N3160 quad
cores 4 threads 1.6~2.24Ghz processor
ITX-P6522ELV-BRS-N3710 Integrated Celeron® Processor N3710 quad
cores 4 threads 1.6~2.56Ghz processor
Quad cores Intel® N3710 mini itx motherboard onboard 4GB DDR3 6COM
2LAN DC12V
Key features
Integrated Intel® Pentium® Processor Braswell N3710 quad cores 4
threads 1.6Ghz
Support Single Channel DDR3 1066/1333MHz
Integrated 2GB4GB DDR3 (default 4GB)
Integrated Intel® HD Graphics
Support dual channel 24bit LVDS / eDP
Support VGA+HDMI,VGA+LVDS,LVDS+HDMI,Synchronous or asynchronous
dual display
Support LVDS+VGA+HDMI three screen Synchronous or asynchronous
display
4*RS232, 2*RS422/RS485
2*Gigabit LAN
5*USB2.0, 2*USB3.0
1 * SATAIII interface
1 * M-SATA Scoket
1*NGFF scoket
Mini-itx 170 x 170 mm
Single input DC12V power supply
Specifications
| Processor | CPU | Integrated Intel® Pentium® Processor Braswell N3710 quad cores 4
threads 1.6Ghz Burst Frequency 2.56Ghz |
| CPU Package | BGA |
| Chipset | Intel Braswell Single chip |
| BIOS | EFI BIOS |
| RAM | Technology framework | Signal Channel DDR3 1066/1333MHz |
| Capacity | Onboard 2GB4GB DDR3 |
| Slot | 1x RAM slot ,max 8GB RAM |
| Video | Graphic controller | Intel HD Graphics |
|
| Dual LVDS and EDP | dual channel 24bit LVDS,Resolution maximum:1920 x 1200 EDP Resolution maximum:4096*2160 (LVDS and EDP Choose one) |
| VGA | Resolution maximum 2048x1536 |
| HDMI | Resolution maximum 4096*2160 |
| Double display support | VGA+HDMI,VGA+LVDS,LVDS+HDMI,Synchronous or asynchronous display |
| Three Display support | LVDS+VGA+HDMI Synchronous or asynchronous display |
| I/O Panel | I/O ports | 1*VGA 1*HDMI 2*USB3.0 2*RJ45 LAN 1*LINE OUT 1*MIC IN |
| NETWORK | CONTROLLER | 2*RTL8111E1000M LAN,RJ45 slot(When the I/O interface is 4 USB, the
network card is 1) |
| AUDIO | CONTROLLER | Realtek HD ALC662 Audio((line-in,line-out,Mic) |
| Super I/O | CONTROLLER | IT8786E |
| HARDWARE MONITORING | Watchdog timer | 0-255sec, sample code optional |
| Cooler | Aluminum alloy heat sink with fan(Fanless) |
| Input/Output Interface | USB | 5*USB2.0 2*USB3.0 max support +5V/1A |
|
| COM | 6*RS-232,Optional 4*RS232,2*RS422/RS485 |
| PS/2 | 1*PS/2expansion header |
| GPIO | 8bit,sample code, Free defination input or output ,3.3V@24mA |
| EXPANSION BUS | Mini-PCle | 1*Mini-PCIe slot,supported PCIE and USB device |
| STORAGE | SATA | 1*SATAIII slot, Maximum transmission rate 6Gb/s(with SATA_HDD slot
Choose one) |
| M-SATA | 1*M-SATA Scoket,support SANDISK protocol,Maximum transmission rate
6gb/s |
| SATA_HDD | 1*SATA_HDD socket(with SATA socket Choose one) |
| NGFF | 1*NGFF scoket(supported WIFI and 3G/4G Module) |
| POWER SUPPLY | Power Type | DC12V |
| Power consumption | 20W |
| working environmen | working temperature | -20℃ ~ +60℃ |
| Storge temperature | -40℃ ~ +85℃ |
| Operating humidity | 0% ~ 90% relative humidity, no condensation |
| Storage humidity | 0% ~ 90% relative humidity, no condensation |
| Support system | OS | Windows10 Linux |
| physical dimension | size | 170 x 170 mm |
| N.W | 0.5KG |
