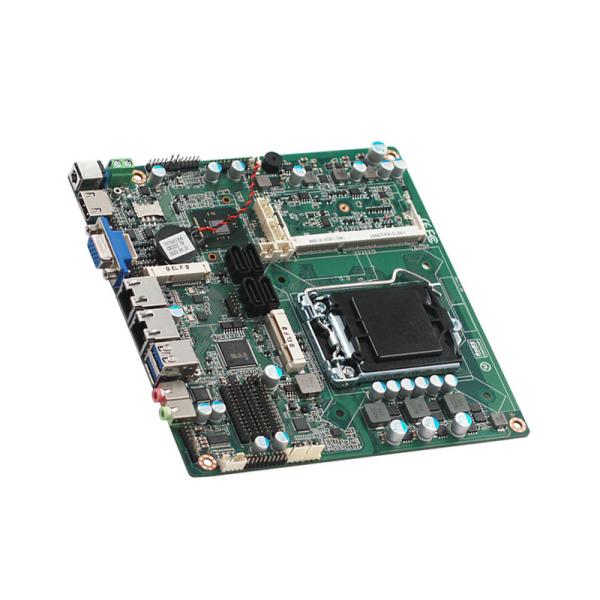

    OEM i7/ i5/ i3 mini PC computer h81/b85 motherboard 6 com 2 lan industrial motherboard

    Ask Lasest Price
    Brand Name : VEGASHINE / OEM
    Model Number : ITX-P6822D-H81
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000 units per Month
    Delivery Time : 3 to 10 work days
    • Product Details
    • Company Profile

    OEM i7/ i5/ i3 mini PC computer h81/b85 motherboard 6 com 2 lan industrial motherboard

    OEM i7/ i5/ i3 mini PC computer h81/b85 motherboard 6 com 2 lan industrial motherboard


    Key features


    Support LGA1150 interface Intel 4th i3-i5-i7/Pentium/Celeron CPU

    Intel® H81/HM86 Express Chipset Optional

    Signal Channel DDR3 1066/1333/1600Mhz

    Onboard 2GB/4GB DDR3L

    Integrated Intel® HD Graphics

    Support LVDS / VGA / HDMI display

    6*COM

    2*Gigabit LAN

    8*USB2.0

    2*USB3.0

    4* SATA

    1* M-SATA Scoket

    Mini-itx 170 x 170 mm

    DC 12V Power supply


    Specifications


    rocessorCPUSupport LGA1150 processor, Intel 4th i3-i5-i7 CPU (optional)
    CPU PackageBGA
    ChipsetIntel® H81/B85 Express Chipset Optional
    BIOSEFI BIOS
    RAMTechnology frameworkSignal Channel DDR3 1066/1333/1600Mhz
    CapacityOnboard 2GB/4GB DDR3L,maximum up to 16GB 8GB DDR3L memory,1066/1333/1600MHz.
    Socket1*PCIE 16X port
    VideoGraphic controllerIntel HD Graphics 4400
    Dual LVDSSupport dual channel 24bit LVDS connector;Resolution maximum:1920*1200
    HDMIResolution maximum:4096X2304@60HZ
    VGAResolution maximum:2048x1536
    Double /Triple display supportLVDS + VGA,LVDS+HDMI,HDMI+VGA;
    LVDS/EDP+VGA+HDMI
    Synchronous or asynchronous display
    I/O Back PanelPorts1*DC 1*VGA 1*HDMI 2*LAN 2*USB3.1 1*LINE OUT 1*MIC
    NetworkController2*RTL8111E-V 1000M LAN,RJ45 ports(When the I/O interface is 4 USB, there is only 1 network card)
    AudioControllerRealtek HD ALC662 chipset
    Super I/OControllerITE8786E
    Hardware monitorWatchdog & Timer0~255 timer (Watchdog code optional)
    CoolerAluminum radiator with fan
    Input/Output InterfaceUSB8*USB2.0, 2*USB3.0 (8 USB2.0 pin headers when dual network cards are used) 6 USB2.0 when on H81 screen and chipset,
    2 USB3.0
    Serial ports6 serial ports (optionally 5 RS232 and 1 RS485/RS422, 4 RS-232, 2 RS422/485 or 6 RS232, RS485 supports automatic flow control)
    PS/2No.
    GPIO8*GPIO expansion header(8 bit),Free definition of input/output,3.3V@24mA electrical level
    Extended busMini-PCle1*Mini-PCIE socket,Support PCIe and USB Device
    StorageSATAThere are 2 standard SATAII interfaces on the H81 chipset, the maximum transfer rate is 3Gb/s, one SATAIII interface is SATA1, the maximum transfer rate is 6Gb/s, and the B85 chipset is 4 SATAIII interfaces, the maximum transfer rate is 6Gb/s
    M-SATA1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 6Gb/s
    Power SupplyPower TypeSingle input DC power supply ,DC12V,+/-5%,Support AT/ATX power supply
    Power Consumption35W
    Working EnvironmentWorking Temperature-20℃ ~ +60℃
    Storage Temperature-40℃ ~ +85℃
    Operating Humidity0% ~ 90% (non-condensing)
    Storage Humidity0% ~ 90% (non-condensing)
    Form factorSize170 x 170 mm
    Weight0.5KG
