Kaby Lake-U i7-7500U 3.5 inch industrial mini pc motherboard 6 com
2 lan PCIE X4 DDR4 pfsense
Notice:
When you inquiry , you can choose the following Model
EC-P6622DB-7TH-3865U, Integrated Kaby Lake-U Intel® Celeron®
Processor 3865U dual cores 2 threads 1.8GHz Processor
EC-P6622DB-7TH-I3, Integrated Kaby Lake-U i3-7100U dual cores 4
threads 2.4GHz Processor
EC-P6622DB-7TH-I5, Integrated Kaby Lake-U i5-7200U dual cores 4
threads 2.5~3.1GHz Processor
EC-P6622DB-7TH-I7, Integrated Kaby Lake-U i7-7500U dual cores 4
threads 2.7~3.5GHz Processor

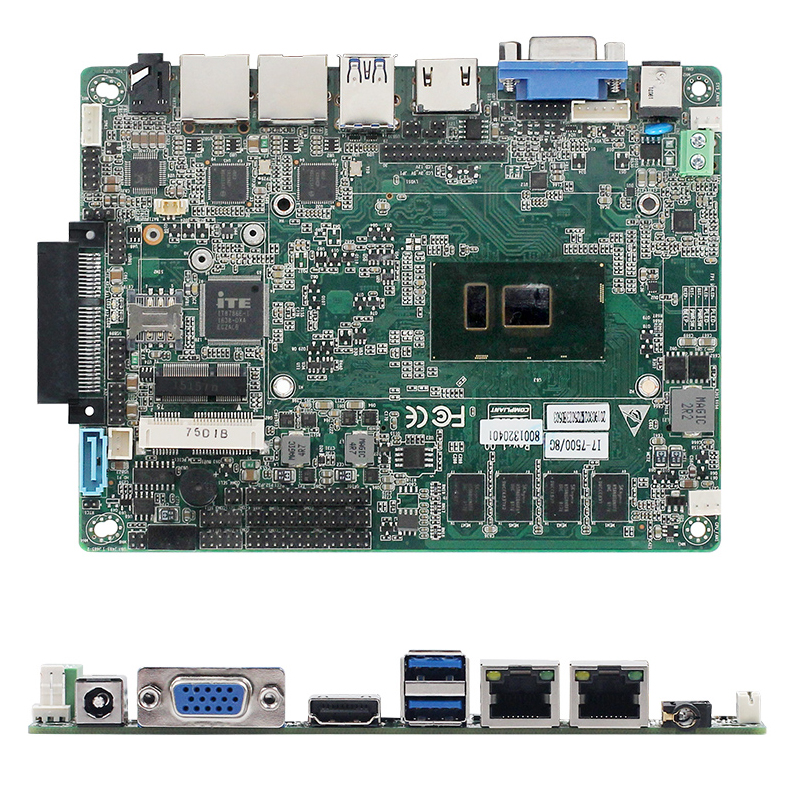

Kaby Lake-U i7-7500U onboard 4GB DDR4 pfsense appliance industrial
mini pc motherboard 6 com dual lan with PCIE X4
Key features
Integrated Kaby Lake-U i7-7500U dual cores 4 threads 2.7~3.5GHz
Processor
Single channel DDR4 2133Mhz up to 16GB
Integration 2GB/4GB/8G DDR4
Integrated Intel® HD Graphics 620
Support LVDS + VGA, LVDS+HDMI, HDMI+VGA Synchronous or asynchronous
display
Support LVDS VGA HDMI three-screen synchronous or asynchronous
display
1* PCIe X4
6*COM
2*Gigabit LAN
2*USB3.0
6*USB2.0
1* SATA3.0
1* Mini-PCIe M-SATA Scoket
Onboard Realtek HD ALC662
Single input DC power supply, DC12V 5A/7A
Size: 154.8 x 117.4 mm
Specifications
| Processor | CPU | Integrated Kaby Lake-U i7-7500U dual cores 4 threads 2.7GHz
Processor Max Turbo Frequency 3.5Ghz |
| CPU Package | BGA |
| Chipset | Intel® Skylake--U processor SOC |
| BIOS | EFI BIOS |
| RAM | Technology framework | Dual Channel DDR4 2133Mhz; |
| Capacity | Integrated 2GB/4GB/8G DDR4 |
| Socket | 1 slot can be added,maximum up to 16GB |
| Video | Graphic controller | Integrated Intel® HD Graphics 620 |
| Dual LVDS and EDP | Support 24 bit output,LVD maximum resolution 1920 x 1200 EDP
maximum resolution 4096*2304(optional) |
| VGA | VGA maximum resolution 2048x1536 |
| HDMI | maximum resolution(HDMI1.4)4096*2304@30HZ support 4K display |
| Double display support | LVDS + VGA,LVDS+HDMI,HDMI+VGA Synchronous or asynchronous display |
| Three display | Support LVDS+VGA+HDMI Three-screen sync or asynchronous display |
| I/O panel | ports | 1*VGA,1*HDMI,2*LAN,2*USB3.0 1*MIC-OUT/LINE-OUT 1*DC |
| Network | Controller | 2* Intel I211AT(When the I/O interface is 4 USB, there is only 1
Intel I211AT NIC) |
| Audio | Controller | Realtek ALC662 HD AUDIO(Left and right channel + microphone) |
| Super I/O | Controller | ITE8786E |
| Hardware monitor | Watchdog & Timer | 0~255 timer (Watchdog code optional) |
| Cooler | Aluminum alloy heat sink with fan(Supports automatic and manual fan
speed adjustment) |
| Input/Output Interface | USB | 2*USB3.0 compatible USB2.0 / 1.1 6*USB2.0,Max. Current supported +5V/1.5A |
| Serial ports | 6*COM ,COM1,2,4 can be selected as RS232 or RS485 by jumper cap and
BIOS. COM3 can be selected as RS232 or RS422/RS485 through jump cap
and BIOS, COM5, COM6 is RS232 (COM1 RS485 with optocoupler
isolation) |
| PS/2 | 1*PS/2 pin header |
| GPIO | 8-bit, provides routines, freely defined input/output, 3.3V@24mA
level |
| Extended bus | PCIe X4 | 1* PCIe X4 |
| Mini-PCle | 1*miniPCIE socket ,supported PCIE and USB device |
| NGFF | 1 *NGFF (KEY E) |
| Storage | SATA | 1*SATAIII interface(Maximum transmission rate to 6gb/s) |
| M-SATA | 1*M-SATA Socket,support SANDISK protocol(Maximum transmission rate
to 6gb/s) |
| Power Supply | Power Type | DC 12V power supply |
| System | System | Windows7 Windows10 Linux |
| working environment | Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ |
| Working humidity | 0% ~ 90% relative humidity, no condensation |
| Storage humidity | 0% ~ 90% relative humidity, no condensation |
| OS system | Windows 10 Linux |
| physical dimension | size | 154.8 x 117.4 mm |
| weight | 0.5KG |
