Ivy Bridge I3-3217U i5-3427U I7-3517U industrial Motherboard With
4GB Ram 6COM 2LAN mini pc mainboard
Notice :
When you inquiry , you can choose the following Model :
EC-P6622D-3THU-I3 Integrated Intel® i3-3217U Dual core 4 threads
1.8Ghz processor
EC-P6622D-3THU-I5 Integrated Intel® i5-3427U Dual core 4 threads
1.8~2.8Ghz processor
EC-P6622D-3THU-I7 Integrated Intel® i7-3517U Dual core 4 threads
1.9~3.0Ghz processor

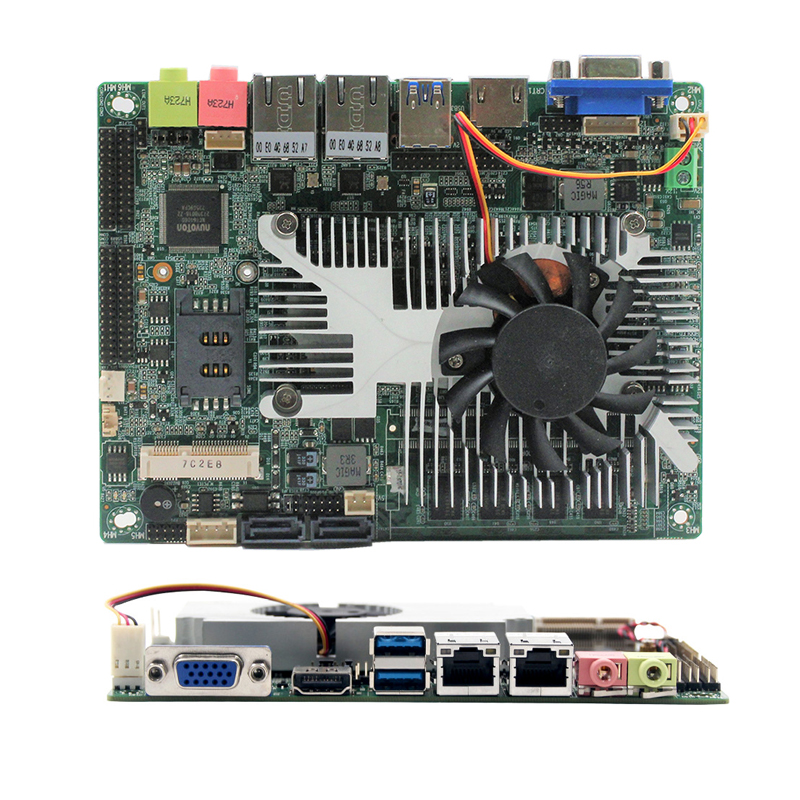

3.5 inch Ivy Bridge I3-3217U i5-3427U I7-3517U industrial
Motherboard With 4GB Ram 6COM 2LAN mini pc mainboard
Key features
Integrated Intel® i5-3427U Dual core 4 threads 1.8~2.8Ghz processor
Onboard DDR3 2GB/4GB Ram
Support LVDS / VGA / HDMI Display
Support double display synchronous or asynchronous display
2*Gigabit Lan
6*USB 2.0, 2*USB3.0
5*RS-232, 1*RS-485/RS-422
1*Mini SATA
2*SATA3.0
1*GPIO header
Aluminum heat sink (fan)
Single input DC power supply, 12V-DC
Size: 155*115 mm (3.5 inch motherboard)
Specifications
| Processor | CPU | Integrated Intel® i5-3427U Dual core 4 threads 1.8Ghz processor Max Turbo Frequency 2.8Ghz |
| CPU Package | BGA |
| Chipset | Intel® HM77/QM77 Express Chipset Optional. |
| BIOS | UEFI BIOS |
| Ram | Technical architecture | DDR3 memory,1066/1333/1600MHz. |
| Capacity | Onboard 2GB /4GB Ram |
| Video | Graphic controller | Intel HD Graphics 3000/4000 (CPU Integrated ) |
| Dual LVDS | Support dual channel 24bit LVDS connector |
| HDMI | Resolution maximum:1920*1200 |
| Double display support | LVDS+VGA,LVDS+HDMI,HDMI+VGA,Synchronous or asynchronous display |
| Rear Panel I/O | Ports | 1*HDMI 1*VGA port 2*Lan 2*USB 3.0 port 1*Audio I/O interfaces (Line_out,Mic_in) |
| Network | Controller | Onboard 2*Gigabit Ethernet,support PXE and Wakeup on LAN. |
| Audio | Controller | Onboard HDA ALC662,provide MIC-IN/LINE-OUT and expansion header. |
| Super I/O | Controller | NCT6106D |
| Hardware Monitor | Watchdog-Timer | 0~255 timer |
| | Cooler | Aluminum heat sink(fan) |
| Input/Output interfaces | USB | 8*USB(2*USB 3.0 port 6*USB 2.0 expansion header),Max. supported
5V/1A |
| Serial port | 6*COM expansion headers (support 5* RS232/1*422/485) |
| PS/2 | 1*PS/2 |
| GPIO | 8*GPIO expansion header(8 bit),3.3V@24mA electrical level |
| Expansion Sockets | Mini-PCle | 1*Mini-PCIE socket for WIFI/3G |
| SIM | 1*SIM card slot for 3G |
| Storage | SATA | 2*SATA3.0 |
| M-SATA | 1*Mini SATA socket for SSD |
| Power supply | Power Type | Single input DC power supply,12V-DC,+/-5% |
| Power Consumption | 20W |
Applications:
Industrial production control
Industrial manufacture
Mini pc motherboard
POS machine motherboard
Queuing machine motherboard
Vending machine main board
Cashier computer motherboard
Bank ATM mainboard
Kiosk motherboard
Smart medicine
Business intelligence terminal
Artificial intelligence
Internet of Things
Shipping
Support DHL / UPS / FEDEX / air shipping deliver time 4 to 9
business days
Support Sea shipping for Batch order deliver time 25 to 50 days
