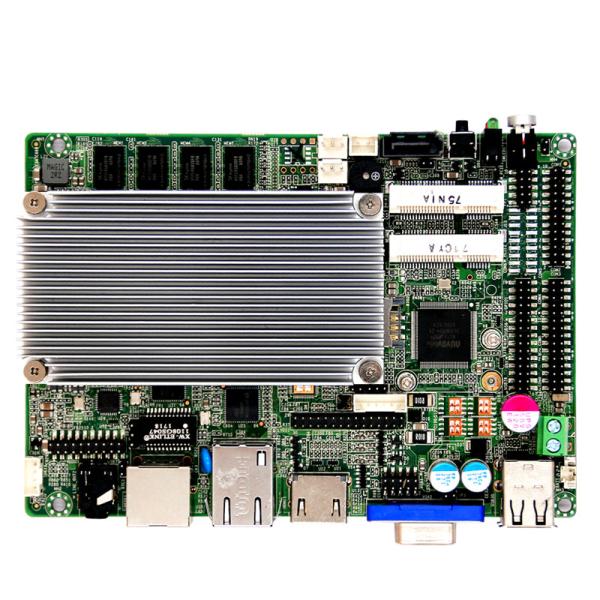

3.5" Bay Trail J1900 E3845 industrial motherboard 2 LAN 6 COM 4GB
RAM 8-36V voltage power
Notice :
When you inquiry , you can choose the following Model :
EC-P6712DW-BT-J1800 Integrated Celeron® Bay Trail J1800 dual core 2
threads 2.41~2.58Ghz processor
EC-P6712DW-BT-J1900 Integrated Celeron® Bay Trail J1900 quad core 4
threads 2.0~2.42 Ghz processor
EC-P6712DW-BT-N2806 Integrated Celeron® Bay Trail N2806 dual core 2
threads 1.6~2.0Ghz processor
EC-P6712DW-BT-E3845 Integrated Atom® Bay Trail E3845 quad core 4
threads 1.91Ghz processor
3.5 inch quad core J1900 industrial motherboard dual LAN 4GB RAM
wide voltage DC 8-36V power supply
Key features
Integrated Bay Trail J1900 quad core 4 threads 2.0~2.42Ghz
processor
Onboard DDR3 2GB/4GB/8GB Ram
Support LVDS / VGA / HDMI Display
Support double display synchronous or asynchronous display
Support touch screen(4wire 5wire 8wire)
2* Gigabit Lan
7*USB 2.0, 1*USB3.0
5*RS-232, 1*RS-485/RS-422
1*Mini SATA
1*SATAII
Aluminum heat sink (fan)
Support wide voltage 8-36V power supply
Size: 146*102 mm
Specifications
| Processor | CPU | Integrated Bay Trail J1900 quad core 4 threads 2.0Ghz processor Burst Frequency 2.42Ghz |
| Chipset | Support Baytrail-I/D/M serial Processor |
| BIOS | EFI BIOS |
| Memory | Technology framework | Singel channel DDR3 1066/1333MHz |
| Capacity | Onboard 2GB/4GB/8G DDR3L |
| | Graphic controller | Intel HD Graphics |
| Video | Dual LVDS&EDP | LVDS support dual channel 24bits display,max. Resolutions:1920 x
1200 EDP support max. Resolutions:2560*1600(LVDS and EDP Display
only can Alternative) |
| | VGA | VGA support max. Resolutions:2048x1536 |
| | HDMI | HDMI support max. Resolutions:1920x1080 |
| | Dual display | LVDS + VGA,LVDS+HDMI,HDMI+VGA sync or asynchronous display |
| Rear Panel I/O | Ports | 1*VGA 1*HDMI 1*USB3.0 3*USB2.0 1*RJ45 Lan card 1*LINE OUT/MIC IN
1*reset button,1*power indicator light,1*hard disk indicator
light,1*Quick switch button |
| Network | Controller | 2*Intel I211 Gigabit Ethernet Port,RJ45 port |
| Audio | Controller | Onboard Realtek HD ALC662 chipset (line-in,line-out,Mic) |
| Super I/O | Controller | NCT6106D |
| | USB | 7*USB2.0,1*USB3.0 Max. supported 5V/1A |
| Input/Output Interface | Serial ports | 5*RS232/1* 422/485,RS485 supported automatic flow control |
| | Touch Screen | Support Touch Screen(4wire 5wire 8wire) |
| | GPIO | 8*GPIO expansion header(8 bit),3.3V@24mA electrical level |
| EXPANSION BUS | Mini-PCle | 2*Mini-PCIe socket,support PCIe,USB device(One of them only
supports short cards) |
| Storage | SATA | 1*SATAII interface(Maximum transmission rate to 3gb/s) |
| M-SATA | 1* M-SATA Scoket,support SANDISK protocol(Maximum transmission rate
to 3gb/s) |
| Power Supply | Power Type | Support wide voltage 8-36V power supply |
| Power Consumption | 20W |
