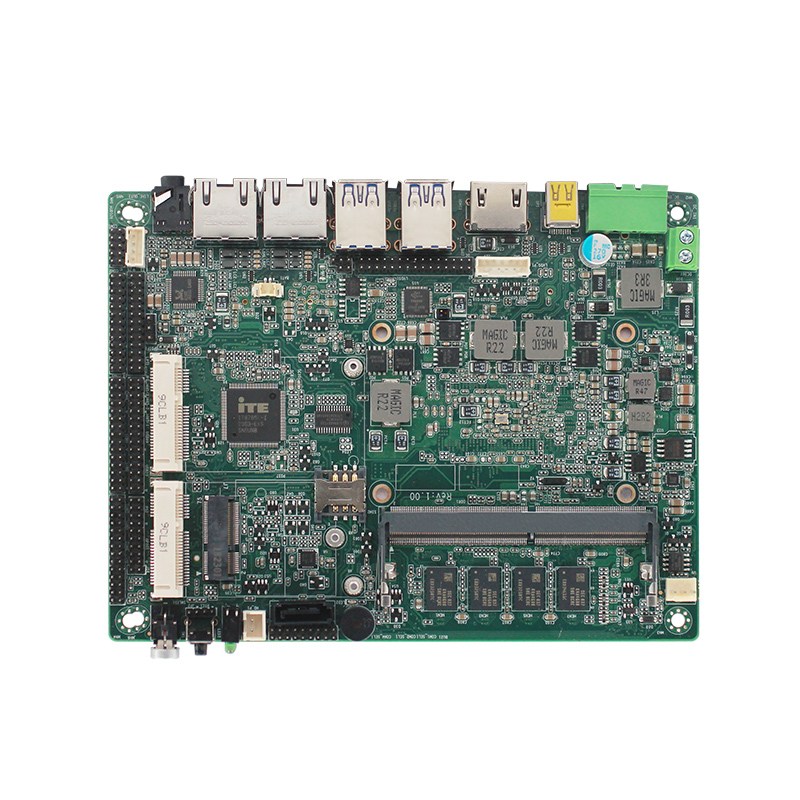

| Processor system | CPU | Integrated Intel 7th generation Kaby Lake-U single-chip CPU Integrated Intel® Kaby Lake i5-7200U dual cores 4 threads 2.5GHz
Processor Max Turbo Frequency 3.1Ghz |
| CPU package | BGA |
| chipset | Intel Kaby Lake-U series SOC |
| BIOS | EFI BIOS |
| RAM | Technology Architecture | Single channel DDR4 2133Mhz; |
| capacity | Integrated 4GB/8G DDR4 |
| Slot | 1 slot can be added, the maximum expansion of 16GB memory |
| Vedio | Graphics controller | Intel HD Graphics 620 (I3-7100U graphics card); the graphics card
model is related to the CPU |
| Dual LVDS and EDP | Support dual-channel 24-bit output, maximum resolution 1920 x 1200
EDP maximum resolution support 4096*2304@60Hz (only one can choose
one) |
| DP++ | 1 DP 1.2 interface, support DP++, maximum resolution support
4096*2304@60HZ support 4K display |
| HDMI | Maximum resolution support (HDMI1.4) 4096*2304@30HZ support 4K
display |
| Dual display support | LVDS/EDP + DP, LVDS/EDP+HDMI, HDMI+DP synchronous or asynchronous
display |
| Three display | LVDS/EDP+DP+HDMI synchronous or asynchronous display |
| I/O backplane | port | 1*HDMI, 1*DP++, 4*USB3.0, 2*LAN, 1*MIC+LINE OUT 1*Phoenix terminal
power interface |
| Network | Controller | 1 Intel I211AT and 1 Intel I219-LM |
| Audio | Controller | Realtek HD ALC662 audio decoding (left and right channels +
microphone) |
| Super I/O | Controller | ITE8786E |
| Hardware monitoring | Watchdog timer | 0-255 seconds, provide watchdog routine |
| Cooler | Aluminum radiator with fan (supports automatic and manual fan speed
adjustment) |
| Input/output interface | USB | 4*USB3.0 compatible with USB2.0/1.1, 4*USB2.0, maximum support
+5V/1.5A |
| Serial port | COM1, 2, 4 can be selected as RS232 or RS485 through the jumper cap
and BIOS, COM3 can be selected as RS422/RS485 through the BIOS,
COM5, COM6 are RS232 |
| PS/2 | 1*PS/2 pin interface |
| touch screen | Supports touch screen 4wire 5wire 8wire (the NGFF interface has no
USB signal when the touch screen is available) |
| GPIO | 8 bits, provide routines, freely define input/output, 3.3V@24mA
level |
| Expansion bus | Mini-PCle | 1 Mini-PCIe slot, supports PCIe and USB devices |
| NGFF | 1 NGFF interface (KEY E touch screen is available without USB
signal, only PCIE signal) |
| storage | SATA | 1 standard SATAIII interface, maximum transfer rate 6Gb/s |
| M-SATA | 1 Mini-PCIe M-SATA Scoket, support SANDISK protocol, maximum
transfer rate 6gb/s |
| power supply | Power type | Wide voltage 9-36V power supply |
| | Operating temperature | -20℃ ~ +60℃ |
| working environment | storage temperature | -40℃ ~ +85℃ |
| | Working humidity | 0% ~ 90% relative humidity, no condensation |
| | Storage humidity | 0% ~ 90% relative humidity, no condensation |
| | | Windows 10 Linux |
| physical dimension | size | 154.8 x 117.4 mm |
| weight | 0.5KG |
