Notice :
When you inquiry , you can choose the following Model :
OPS-PM04C-I3 : Integrated Intel® Haswell i3-4010U dual cores 4
threads 1.7GHz Processor
OPS-PM04C-I5 : Integrated Intel® Haswell i5-4200U dual cores 4 threads 1.6~2.6GHz
Processor
OPS-PM04C-I7 : Integrated Intel® Haswell i7-4500U dual cores 4 threads 1.8~3.0GHz
Processor

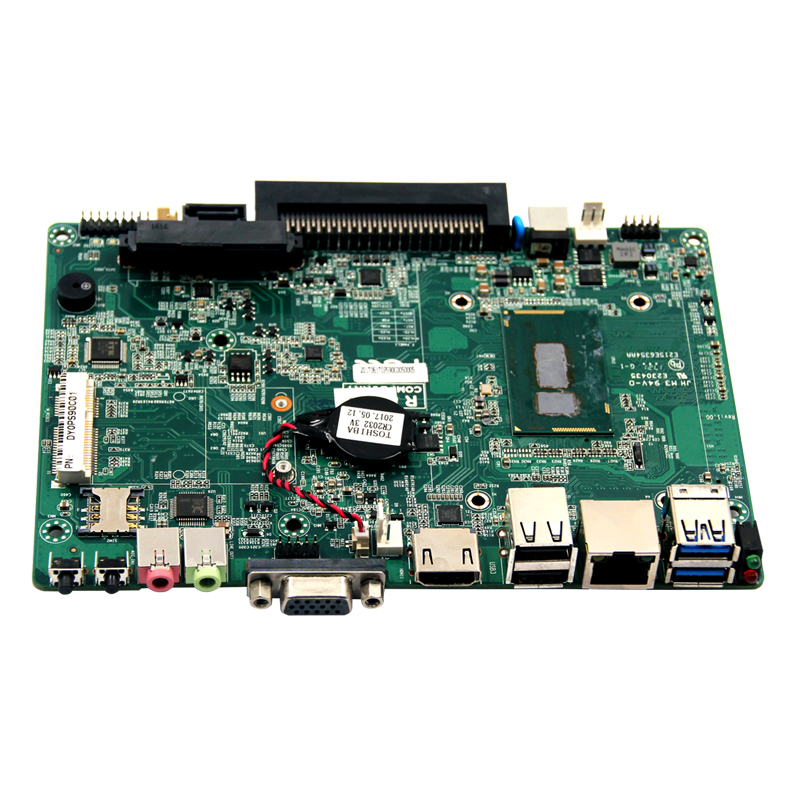

Haswell I3-4010U I5-4200U I7-4500U OPS PC Mainboard With RS-232 For
Teaching Whiteboard DC12-19V
Key features
Integrated Intel® Core™Haswell i7-4500U dual cores 4 threads
1.8~3.0Ghz
Dual channel DDR3L 1066/1333/1600MHz
1*DDR3 SODIMM 204 Socket
Onboard 1*Gigabit Ethernet Port
1*SATA3.0
1*Mini-PCIe MSATA Socket
1*Gigabit LAN
1*RS-232
1*VGA,1*HDMI
2*USB3.0
2*USB2.0
Support OPS Expansion
Size: 165*114.2 mm
Single input DC power supply, DC12-19V, +/-5%
Specifications
| Processor | CPU | Integrated Intel® Core™Haswell i7-4500U dual cores 4 threads
1.8~3.0Ghz Max Turbo Frequency 3.0Ghz |
| CPU package | BGA |
| Chipset | Intel Haswell-U series SOC |
| BIOS | EFI BIOS |
| Memory | Technology architecture | Dual channel DDR3L 1066/1333/1600MHz |
| Socket | 1*DDR3 SODIMM 204 Socket |
| Video | Graphics controller | Intel HD Graphics 4400(I3-4010U graphics card)The graphics card is
related to the CPU |
| VGA | VGA max support 2048*1536 resolution |
| HDMI | MAX Resolution support(HDMI1.4)3200*2000@60HZ |
| Dual display | HDMI+VGA Synchronous or asynchronous display |
| I/O Panel Port | Port | 1*VGA 1*HDMI 1*LAN 2*USB3.0 2*USB2.0 1*MIC-OUT/LINE-OUT 1*switch button 1 * hard disk indicator 1 * power indicator 1*Restart |
| Button 1*DC |
| Network | controller | 1*RTL8111E-V Gigabit Ethernet Port,RJ45Port |
| Audio | controller | Realtek HD ALC662 audio decoding (left and right channel +
microphone) |
| Super I/O | controller | IT8163E |
| Hardware controller | Watchdog timer | 0-255 Seconds, providing a watchdog routine |
| Cooler | Aluminum fan radiator |
| Input /Output Port | USB | 2*USB3.0 compatible with USB2.0 / 1.1,Max support +5V/1A 2*USB2.0 |
| Serial port | 1*RS-232 |
| Expansion Bus | Mini-PCle | 1*Mini-PCIe Socket,Support PCIe and USB device |
| Storage | SATA | 2*standard SATAIII Port ,Interface maximum transfer rate of 6Gb/s |
| SATA_HDD | 1*SATA_HDD Interface, maximum transfer rate of 6Gb/s |
| M-SATA | 1 *Mini-PCIe MSATA Socket, support SANDISK protocol, the maximum
transfer rate of 6gb/s |
| Power supply | Power type | Single input DC power supply, DC12-19V, + / - 5% |
| Power Consumption | 35W |
| Working Environment | Working Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Working Humidity | 0% ~ 90%Relative humidity, non- condensing |
| Storage Humidity | 0% ~ 90%Relative humidity, non- condensing |
| System Support | | Windows7 Windows10 Linux |
| Form Factor | Dimensions | 165*114.2 mm |
| Weight | 0.5KG |
Application
Teaching whiteboard / Education electronic whiteboard / Classroom
interactive whiteboard
Meeting interactive whiteboard / Coference interactive whiteboard
Shipping
Support DHL / UPS / FEDEX / air shipping deliver time 4 to 9
business days
Support Sea shipping for Batch order deliver time 25 to 50 days
