Windows 10 J3355 8 inch Touch Screen 4GB RAM 64GB ROM all in one
industrial tablet PC
Product Features
1. Intel Celeron powerful CPU, fast speed
2. Mini size 8 inch, portable, 8” IPS High Definition resolution
3. Low power consumption, less than 10w
4. Dual band wifi, WIFI 802.11ac/b/g/n 5G&2.4G
5. With Blue-tooth 4.2 and 1000Mbps Gigabit Lan
6 Fanless, 7*24 hours operation
7. Wake up on lan, PXE, Auto power on

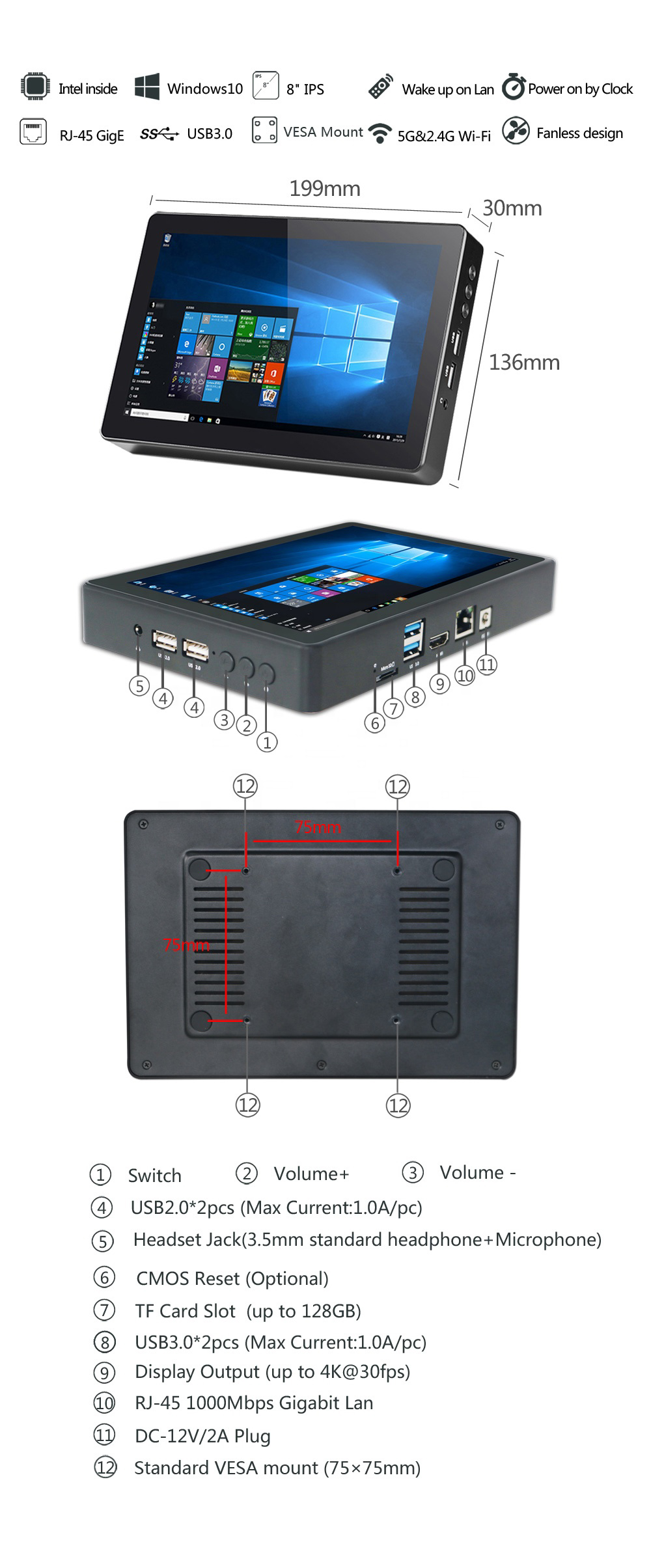

8. Multi interfaces, RJ45, HD-MI(up to 4K), RS232, USB3.0, USB2.0,
Audio Jack, TF card reader
9. Wide usage, POS system, education, 3D printing, video meeting,
industrial control, etc
Specifications
| System Physical Standard Configuration: |
| Type | Details | Descriptions |
| Product Form | Form Factor | 8" mini Aio PC |
| Dimensions | 199 x 136 x 27mm |
| Weight | 0.7KG |
| LCD | Screen Size | 8" |
| Screen Resolution | 1280×800 (IPS + 250ANSI) |
| TP | Touch Module | G+G Multi-Touch |
| Battery | Recharge Li-ion battery | Optional |
| System Hardware Configuration: |
| Type | Details | Descriptions |
| CPU | Type | Intel Apollo Lake J3355 Dual-Core |
| Speed | 2GHz ~ 2.50GHz |
| GPU | Type | Intel HD Graphics 500 |
| Memory | Capacity | 4GB (LPDDR4) |
| Storage | eMMC | 64GB |
| SSD (M.2; 22×42mm) | Optional |
| SATA 2.5“ HDD | Optional |
| Speaker | Built-in | 8Ω/1W |
| Micphone | Built-in | Optional |
| G-sensor | Built-in | Yes |
| Network Connections: |
| Type | Details | Descriptions |
| WIFI | WIFI Module: Intel AC3165 | WIFI 802.11ac/b/g/n 5G&2.4G Dual-band |
| Blue-tooth | BT Module: Intel AC3165 | Blue-tooth4.2 |
| Ethernet Network | RJ-45 | 100/1000Mbps Gigabit Lan |
| 4G LTE | M.2 4G module | Optional |
| Interface Configuration: |
| Type | Details | Descriptions |
| USB Interface | USB3.0 Host | ×2pcs |
| USB2.0 Host | ×2pcs |
| SD / TF Card reader | TF Card reader | ×1pc |
| Audio Jack | 3.5mm headphone | ×1pc |
| HD-MI | HD-MI 1.4 | ×1pc |
| Video output through HD-MI | Up to 4K |
| Button Switch: |
| Type | Details | Descriptions |
| Power | On/Off | ×1pc |
| Volume | Down/UP | ×1pc |
| CMOS Reset | Reset by Short Press | Optional |
| Main Accessories: |
| Type | Details | Descriptions |
| Power adapter | DC 12V/2A | ×1pc |
| User's Manual | User's Manual | ×1pc |
| Software Configuration: |
| Type | Details | Descriptions |
| Power on Function | By Power Button or Auto Power on | Optional |
| Wake up on Lan | Wake up on Lan by RJ45 | Support |
| PXE | Preboot Execution Environment | Support |
| Operating System | Windows 10 | Optional |
| Linux | Test by end user |
| Environment: |
| Temperature | Operation Temperature | -10oC ~ 50oC (1080p or 4K local video display) |
| Storage Temperature | -20oC ~ 70oC (Restore to Operation Temperature 2hr before use) |
| Humidity | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing |
| Storage Humidity | 20% ~ 93% relative humidity, Non-condensing |
Product Features
1. Intel Celeron powerful CPU, fast speed
2. Mini size 8 inch, portable, 8” IPS High Definition resolution
3. Low power consumption, less than 10w
4. Dual band wifi, WIFI 802.11ac/b/g/n 5G&2.4G
5. With Blue-tooth 4.2 and 1000Mbps Gigabit Lan
6 Fanless, 7*24 hours operation
7. Wake up on lan, PXE, Auto power on
8. Multi interfaces, RJ45, HD-MI(up to 4K), RS232, USB3.0, USB2.0,
Audio Jack, TF card reader
9. Wide usage, POS system, education, 3D printing, video meeting,
industrial control, etc
