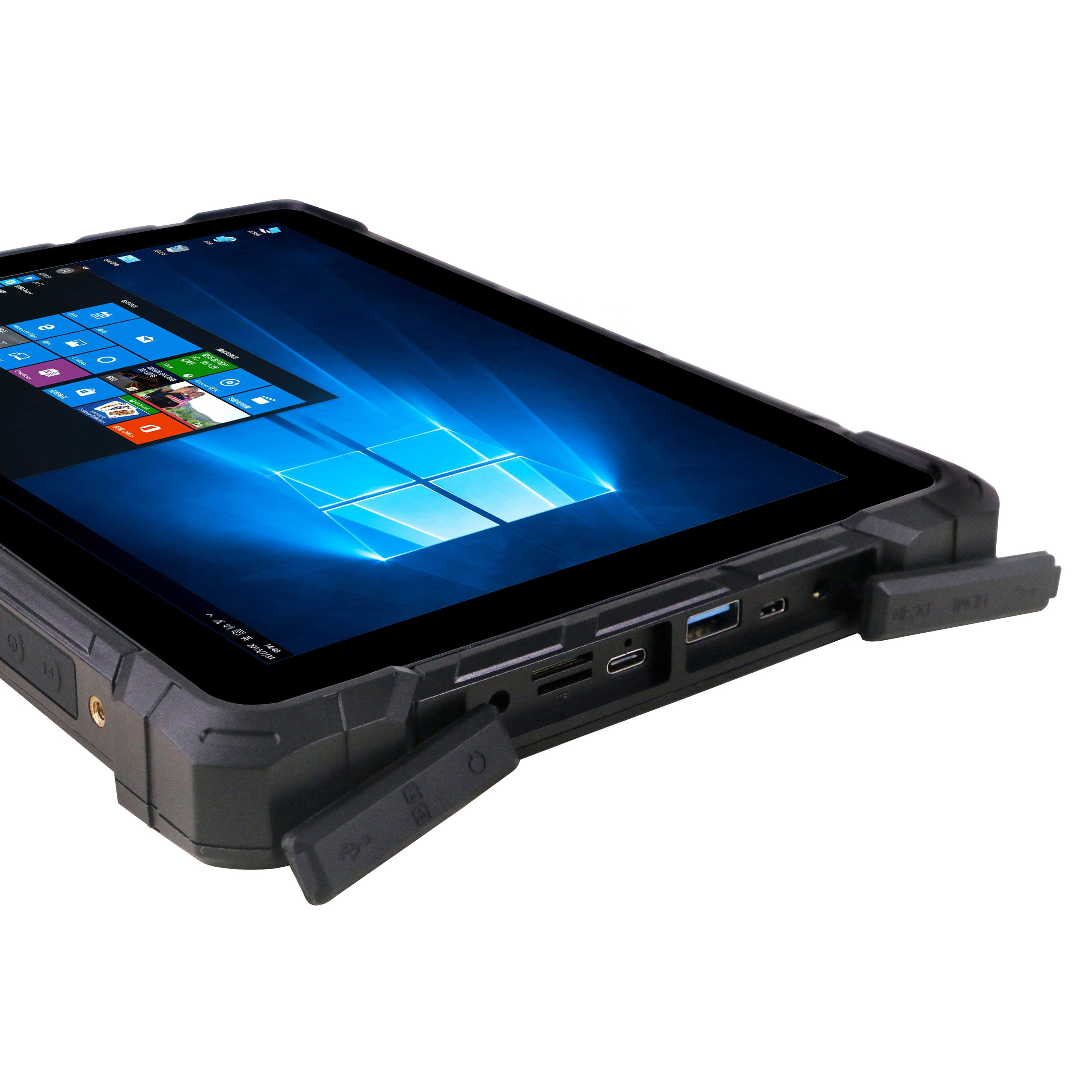

10.1 inch N4120 Windows 10 Touch Screen Fingerprint Industrial
Rugged Tablets PC with RS232 COM
| System Physical Standard Configuration: |
| Type | Details | Descriptions |
| Product Form | Form Factor | IP67 Rugged Tablet PC |
| Dimensions | 280×184×26.5mm |
| Weight | 1.15KG |
| LCD | Screen Size | 10.1" |
| Screen Resolution | 800×1280 (IPS+HD+300ANSI) (Standard) |
| TP | Touch Module | G+G Multi-Touch (10 Points) |
| Battery | Type | Rechargeable lithium polymer |
| Capacity | 8000mAh/7.6V |
| Working Time | Over 8 hours (HD local video display) |
| System Hardware Configuration: |
| Type | Details | Descriptions |
| CPU | Type | Intel Gemini lake N4120 (Quad-Core) |
| Speed | 1.1GHz ~ 2.6GHz (N4120) |
| GPU | Type | Intel UHD 600 Graphics |
| Memory | Capacity | 8GB LPDDR4 |
| Storage | eMMC | 128GB |
| Camera | Front | 2M |
| Rear | 5M |
| Speaker | Built-in | 8Ω/1W*2pcs with water proof |
| Microphone | Built-in | Yes |
| G-sensor | Built-in | Yes |
| Light-sensor | Built-in | Optional |
| Network Connections: |
| Type | Details | Descriptions |
| WIFI | WIFI Module: Intel AC3165 | WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band |
| Blue tooth | BT Module: Intel AC3165 | Bluetooth4.2 |
| 4G LTE | Optional | Optional (Mini PCI-E slot) |
| QR code Scanners | Optional | Optional |
| GPS | BD2/GPS/Glonass (Choose two of the three) | Optional |
| NFC | Optional | Optional |
| Fingerprinter | Optional | Optional |
| RFID | UHF band | Optional |
| Ethernet Network | RJ-45 | 1000Mbps Gigabit Lan |
| Interface Configuration: |
| Type | Details | Descriptions |
| Type-C | Type-C 3.1 | ×1pc (Support Data transfers and Power output) |
| USB Interface | USB3.0 | ×2pcs |
| SD / TF Card reader | TF Card reader | ×1pc (up to 256GB) |
| SIM Card Slot | SIM Slot for 4G LTE | ×1pc |
| Audio Jack | 3.5mm standard headphone+Microphone | ×1pc |
| HD MI | Micro HDMI2.0 | ×1pc (Output 4K@60fps UHD video) |
| COM Port | DB9 (RS232) | ×1pc |
| Button Switch: |
| Type | Details | Descriptions |
| Power | On/Off | ×1pc |
| Volume | Down/UP | ×1pc |
| HotKey | Hot Key for QR Scanner | ×1pc |
| Forced outage | Power restart when push restart button | ×1pc |
| Main Accessories: |
| Type | Details | Descriptions |
| Power adapter | DC 12V/3A | ×1pc |
| User's Manual | User's Manual | ×1pc |
| Handle Straps | Handle straps and hand clasping | Optional |
| Extension Docking | USB2.0; Power charging; RJ45; RS232 | Optional |
| Vehicle Bracket | USB2.0; Power charging; RJ45; RS232 | Optional |
| Software Configuration: |
| Type | Details | Descriptions |
| Power on Function | By Power Button or Auto Power on | Optional |
| Wake up on Lan | Wake up on Lan by RJ45 | Yes |
| PXE | Preboot Execution Environment | Yes |
| Security | TPM2.0 (Hardware) contained | Optional |
| Operating System | Windows 10 Pro or above | Yes (Official Windows license is Optional) |
| Environment: |
| Temperature | Operation Temperature | -10oC ~ 55oC (1080p or 4K local video display) |
| Storage Temperature | -20oC ~ 70oC (Restore to Operation Temperature 2hr before use) |
| Humidity | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing |
| Storage Humidity | 20% ~ 93% relative humidity, Non-condensing |
| Certification: |
| IP67 | IP67 Certification | Yes |
| MIL-STD-810G | Match the militry standard of USA | Yes |
1.IP67 waterproof, shockproof, dustproof, anti-vibration,
anti-crash, suitable for harsh environment. Can withstand moisture,
extreme temperatures, drops, shocks, vibration, rain, dirt, mud,
sand, water, altitude, humidity.
2. Intel Gemini lake N4120 quad core powerful CPU , allows for high
speed running of multiple tasks .
3. With HDMI and tablet LCD, can show two different contents at the
same time.
4. Fanless design, can work 7 days 24 hours without stopping.
5. With TPM2.0, can encrypt your files
6. Built with shockproof metal, can be anti-shock for 120cm height
for wooden floor
7. Easy to be detached SIM card slot
8. Multi interfaces, RJ45, USB3.0, Type C 3.1, RS232, HD-MI, TF
card reader, SIM card slot
9. Dual band wifi, 2.4G&5G, and 1000Mbps Gigabit Lan to
maintain stable network
10. Windows 10 Professional operation system, 8GB system memory,
128GB storage drive.
11. Up to 512GB expandable memory through micro SD or TF card.
12. With 45000mAh rechargeable battery, dual cameras, BT4.2
13. Support docking charge, 4G LTE, GPS, NFC, RFID, Fingerprinter,
QR code scanners
14. HD IPS, 1280*800 300ANSI, sunlight readable
15. Low power, DC 12V/3A
16. 10.1inch size, portable
