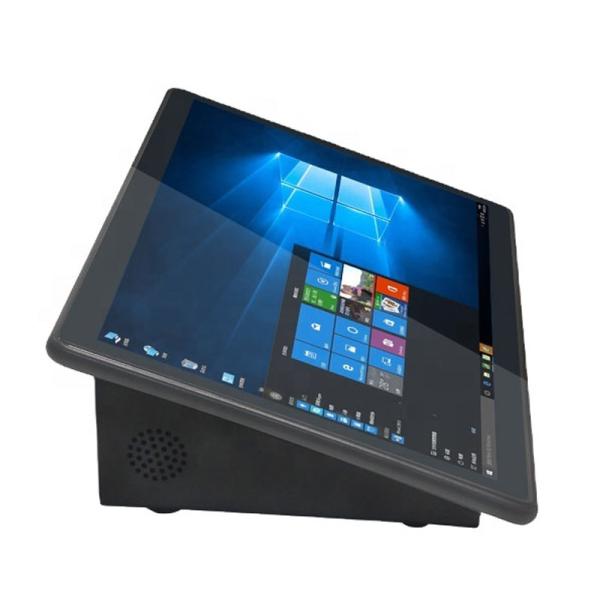

POS System Industrial Tablet 11.6'' Touch Screen Panel J3355 All in
One computer Windows 10 Mini PC
Product Features
1. Intel Apollo Lake J3355 Dual-Core processor
2 Mini size, 11.6 inch portable, 11.6” 1920*1080 IPS FullHD
resolution
3. Low power consumption, less than 10w
4. Dual Frequency WIFI, 2.4G&5G and 1000Mbps Gigabit Lan
5. With HDM I(up to 4K), BT, RJ45
6. 3* RS232 com and 1 * RS485 com port
7. 2*USB3.0, 2* USB2.0
8. Fanless, 7*24 hours operation
9. Wake up on lan, PXE, Auto power on
10. Wide usage, POS system, education, 3D printing, video meeting,
industrial control, education, smart home, laboratory testing etc
| System Physical Standard Configuration: |
| Type | Details | Descriptions |
| Product Form | Form Factor | 11.6" mini Aio PC |
| Dimensions | 283 x 177 x 73mm |
| Weight | 1.25KG |
| LCD | Screen Size | 11.6" |
| Screen Resolution | 1920×1080 (IPS + 250ANSI) |
| TP | Touch Module | G+G Multi-Touch |
| Battery | Recharge Li-ion battery | Optional |
| System Hardware Configuration: |
| Type | Details | Descriptions |
| CPU | Type | Intel Apollo Lake J3355 Dual-Core |
| Speed | 2GHz ~ 2.50GHz |
| GPU | Type | Intel HD Graphics 500 |
| Memory | Capacity | 4GB (LPDDR4) |
| Storage | eMMC | 64GB |
| SSD (M.2; 22×42mm) | Optional |
| Speaker | Built-in | 8Ω/1W |
| Micphone | Built-in | Optional |
| G-sensor | Built-in | Yes |
| Network Connections: |
| Type | Details | Descriptions |
| WIFI | WIFI Module: Intel AC3165 | WIFI 802.11ac/b/g/n 5G&2.4G Dual-band |
| Blue-tooth | Blue-tooth Module: Intel AC3165 | BT4.2 |
| Ethernet Network | RJ-45 | 100/1000Mbps Gigabit Lan |
| 4G LTE | M.2 4G module | Optional |
| Interface Configuration: |
| Type | Details | Descriptions |
| USB Interface | USB3.0 Host | ×2pcs |
| USB2.0 Host | ×2pcs |
| SD / TF Card reader | TF Card reader | ×1pc |
| Audio Jack | 3.5mm headphone | ×1pc |
| HD-MI | HD-MI 1.4 | ×1pc |
| Video output through HD-MI | Up to 4K |
| COM Port | DB9 (RS232) / (RS485) | ×4pcs (RS232×3pcs + RS485×1pc) |
| Button Switch: |
| Type | Details | Descriptions |
| Power | On/Off | ×1pc |
| Volume | Down/UP | ×1pc |
| CMOS Reset | Reset by Short Press | Optional |
| Main Accessories: |
| Type | Details | Descriptions |
| Power adapter | DC 12V/2A | ×1pc |
| User's Manual | User's Manual | ×1pc |
| Software Configuration: |
| Type | Details | Descriptions |
| Power on Function | By Power Button or Auto Power on | Optional |
| Wake up on Lan | Wake up on Lan by RJ45 | Support |
| PXE | Preboot Execution Environment | Support |
| Operating System | Windows 10 | Optional |
| Linux | Test by end user |
| Environment: |
| Temperature | Operation Temperature | -10oC ~ 50oC (1080p or 4K local video display) |
| Storage Temperature | -20oC ~ 70oC (Restore to Operation Temperature 2hr before use) |
| Humidity | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing |
| Storage Humidity | 20% ~ 93% relative humidity, Non-condensing |
