4K Display OPS Mini Computer PC Intel 6th Gen I3-6100U I5-6200U I7-6500U

Ask Lasest Price
Brand Name :	VEGASHINE / OEM
Model Number :	OPSPC-P01-6TH
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	1000 units per Month
Delivery Time :	3 to 10 work days

Add to Cart

Product Details
Company Profile

4K Display OPS Mini Computer PC Intel 6th Gen I3-6100U I5-6200U I7-6500U

intel@ 6th Gen i3-6100U i5-6200U i7-6500U 4K display OPS mini computer with m.2 ssd slot for electronic whiteboard

Notice:

When you inquiry , you can choose the following Model

OPSPC-P01-6TH-3855U Integrated Skylake Intel® Celeron® Processor Dual core 2 threads 1.6Ghz processor

OPSPC-P01-6TH-I3 Integrated Skylake i3-6100U dual cores 4 threads 2.3GHz Processor

OPSPC-P01-6TH-I5 Integrated Skylake i5-6200U dual cores 4 threads 2.3~2.8GHz Processor

OPSPC-P01-6TH-I7 Integrated Skylake i7-6500U dual cores 4 threads 2.5~3.1GHz Processor

intel@ 6th Gen i3-6100U i5-6200U i7-6500U 4K display OPS mini computer with m.2 ssd slot for electronic whiteboard

Key features

Integrated Skylake-U intel@ 6th Gen i3-6100U i5-6200U i7-6500U / Celeron@ 3855U
Support 1 *DDR4 SODIMM 260 Socket
Onboard 1*Gigabit Ethernet Port
1*SATA3.0
1*NGFF_SSD Port
1*Gigabit LAN
1*HDMI
1*VGA
2*USB3.0
4*USB2.0
1*80pin standard OPS port
DC 12V 60W power adapter

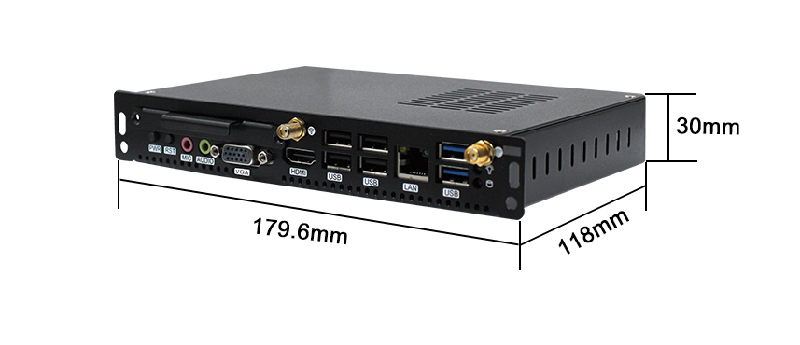

Size: 179.6*118*29.6 mm

Specifications

Processor	CPU	Integrated Skylake-U intel@ 6th Gen i3-6100U/ i5-6200U/ i7-6500U / Celeron@ 3855U
	CPU package	BGA
	chipset	intel® Skylake-U serial SOC
	BIOS	EFI BIOS
Memory	Technology Architecture	Single channel DDR4 2133MHz
Memory	socket	1 *DDR4 SODIMM 260 Socket
Video	Graphic controller	Intel HD Graphics 520(I7-6500U graphics card); graphics models related to CPU
	VGA	VGA support max resolution:2048x1536
	HDMI	support max resolution(HDMI1.4)4096*2304@30HZ support 4k display output
I/O interface	Port	1LAN 1HDMI 1VGA 1DC 1MIC-IN 1LINE-OUT 2USB3.0 4USB2.0 2WIFI antenna interface 1switch button 1reset button 1hard disk indicator 1power indicator 180pin standard OPS port
OPS straight card interface		1LINE-OUT 1HDMI or1DP (pick one from two ) 1DC 3USB 1 switch button
Internet	controller	1 * RTL8111E-V Gigabit Ethernet, RJ45 interface
Audio	controller	Realtek HD ALC662 audio decoding (left and right channel + microphone)
Hardware control	Watchdog timer	0-255 seconds to provide watchdog routines
Hardware control	Cooler	Aluminum fan heatsink
storage	SATA	1 standard SATAIII interface, maximum transfer rate of 6Gb/s (and SATA_HDD one by one, default is SATA_HDD)
storage	NGFF	1*NGFF_SSD Port
Other		112V 60W power adapter 1OPS riser card (optional) 1*WIFI antenna
Power type	Power type	Single input DC power supply,DC12V,+/-5%
Working Environment	Working temperature	-20℃ ~ +60℃
	Storage temperature	-40℃ ~ +85℃
	Operating humidity	0% to 90% relative humidity, no condensation
	Storage humidity	0% to 90% relative humidity, no condensation
Dimension	size	179.611829.6 mm

Application

Teaching whiteboard / Education electronic whiteboard / Classroom interactive whiteboard
Meeting interactive whiteboard / Coference interactive whiteboard

Shipping

Support DHL / UPS / FEDEX / air shipping deliver time 4 to 7 business days
Support Sea shipping for Batch order deliver time 25 to 50 days
